KAEDEAR Motorcycle Power Relay Kit DC12V 20A, Waterproof 4-Way Fuse Block Acc Splitter, Quick-Connect Stripped Wires, 4 Accessory Power Distribution Junction Box - Junction Power Relay KDR-E2

About This

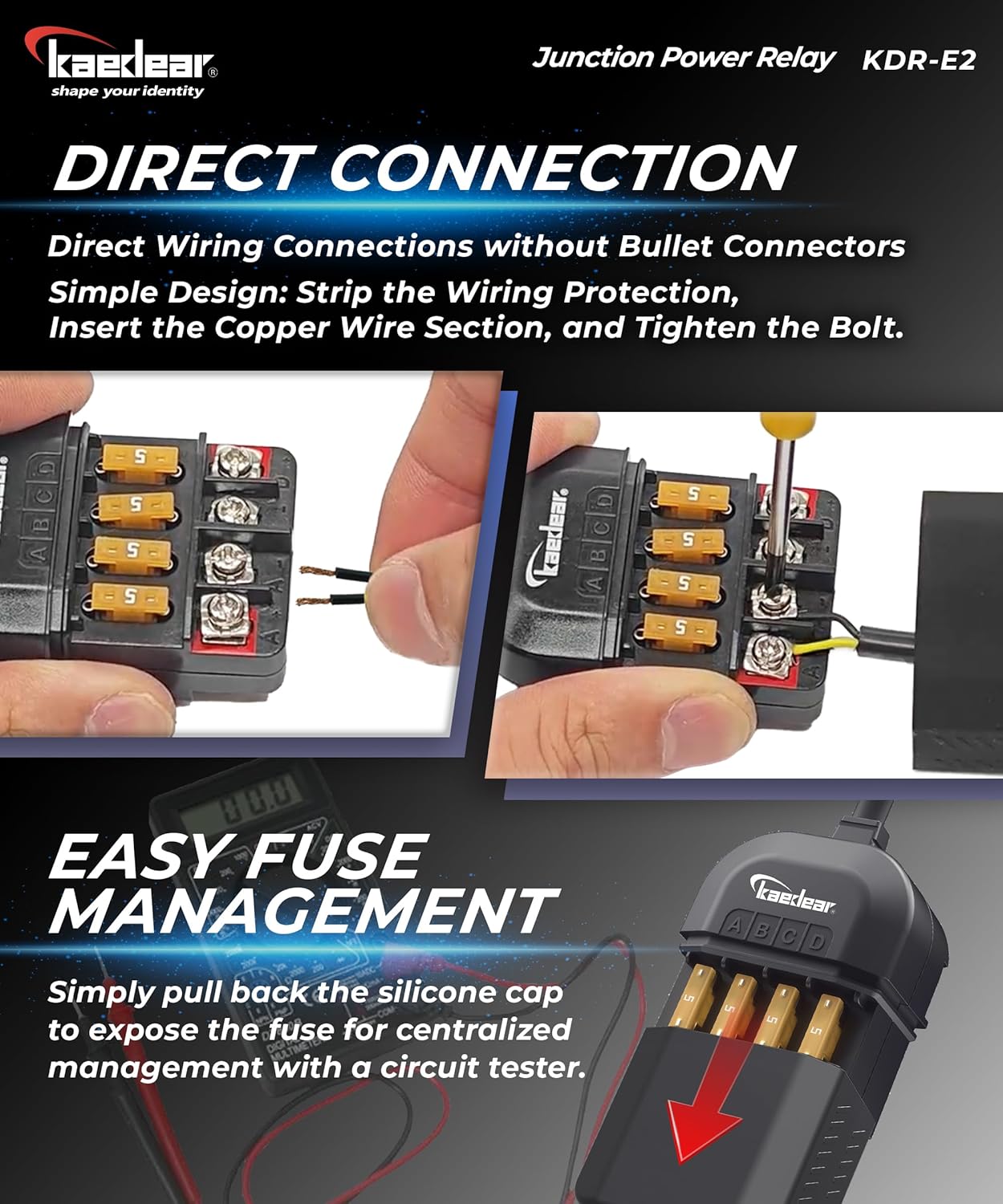

• [Direct connection] The output terminals of each of the four systems can be directly connected to wiring without using bullet terminals. Simply strip the wiring, insert the copper wire, and tighten the bolts. Once installed, you can add electrical equipment without the need for electric pliers or crimp terminals.
• [Features] Easy Connection: Insert stripped wires and tighten the bolt. Compact Design: Fits easily under seats or in tight spaces. Key-ON Linkage & High Capacity: Distributes up to 20A (5A×4 systems) from ACC power. Waterproof Silicone Cover: Protects against rain (not fully waterproof). Install wiring downward for drainage. Easy Fuse Access: Flip the cover to inspect fuses with a tester. Ideal for unified power management of smartphone holders, grip heaters, USB chargers, and other accessories.

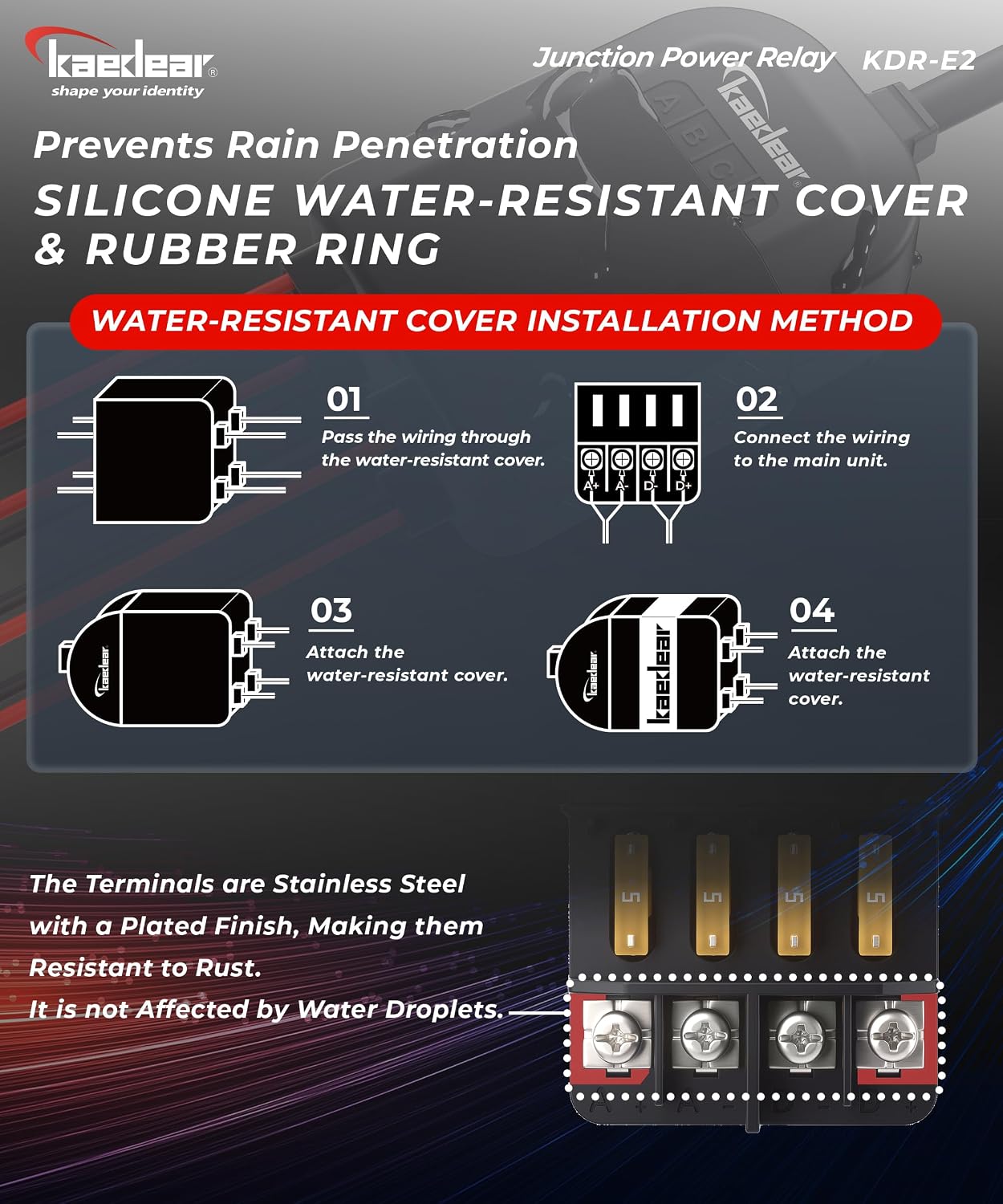

• [Caution] To prevent submersion in water, always install the wiring facing downwards. The terminals are rust-proofed, but corrosion may occur depending on the usage environment. Low-profile fuses are easily damaged, so handle them carefully when removing them.

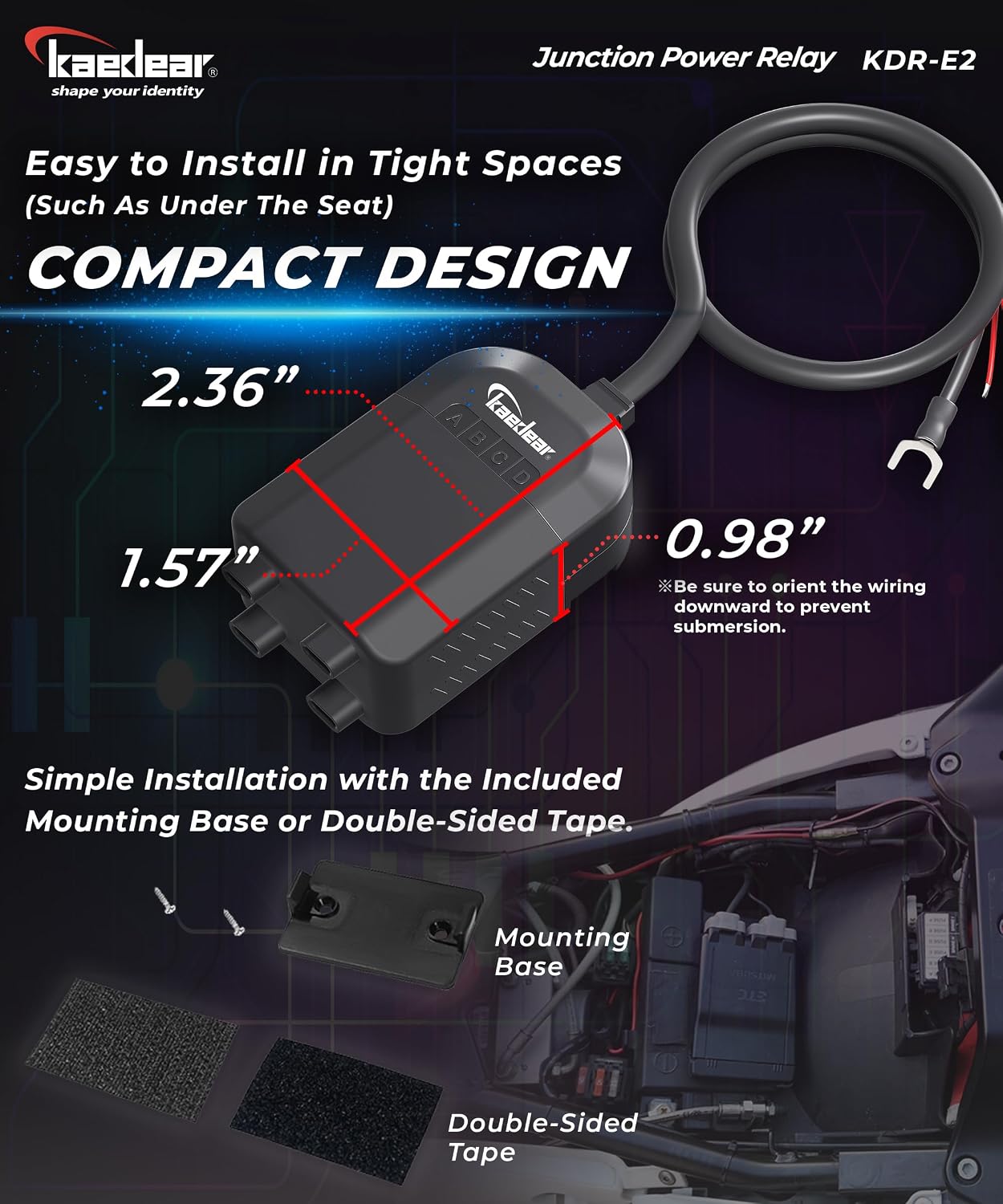

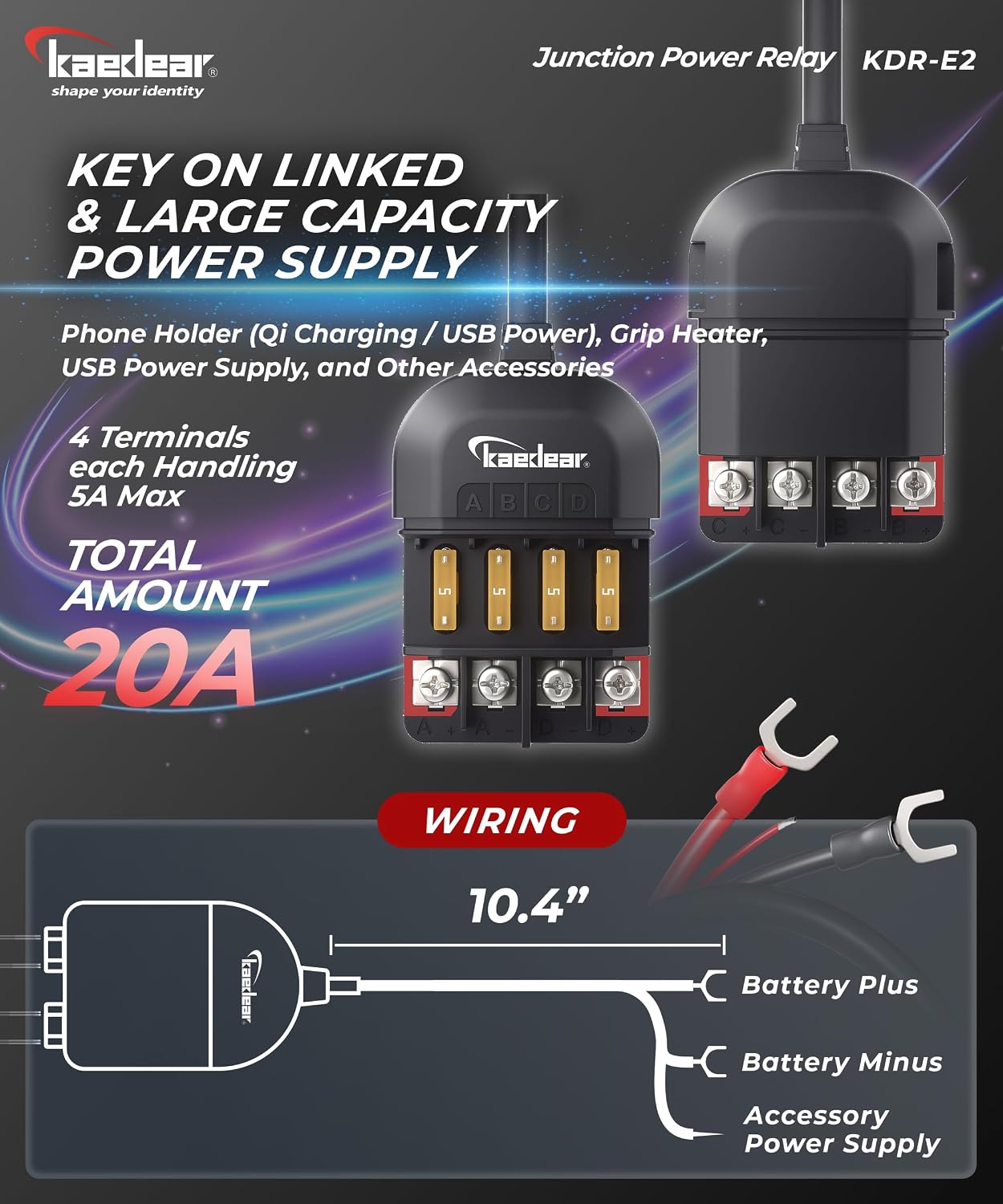

• [Product Specifications] Input Voltage: 12-16V = Maximum Output: 20A in total (maximum 5A for each system) Body Size: 2.36 x 1.57 x 0.98 inches / 60 x 40 x 25mm Wiring Length: 10.43 inches / 265 mm Material: Polycarbonate Connection method: Battery +, -, ACC (Accessory Power)

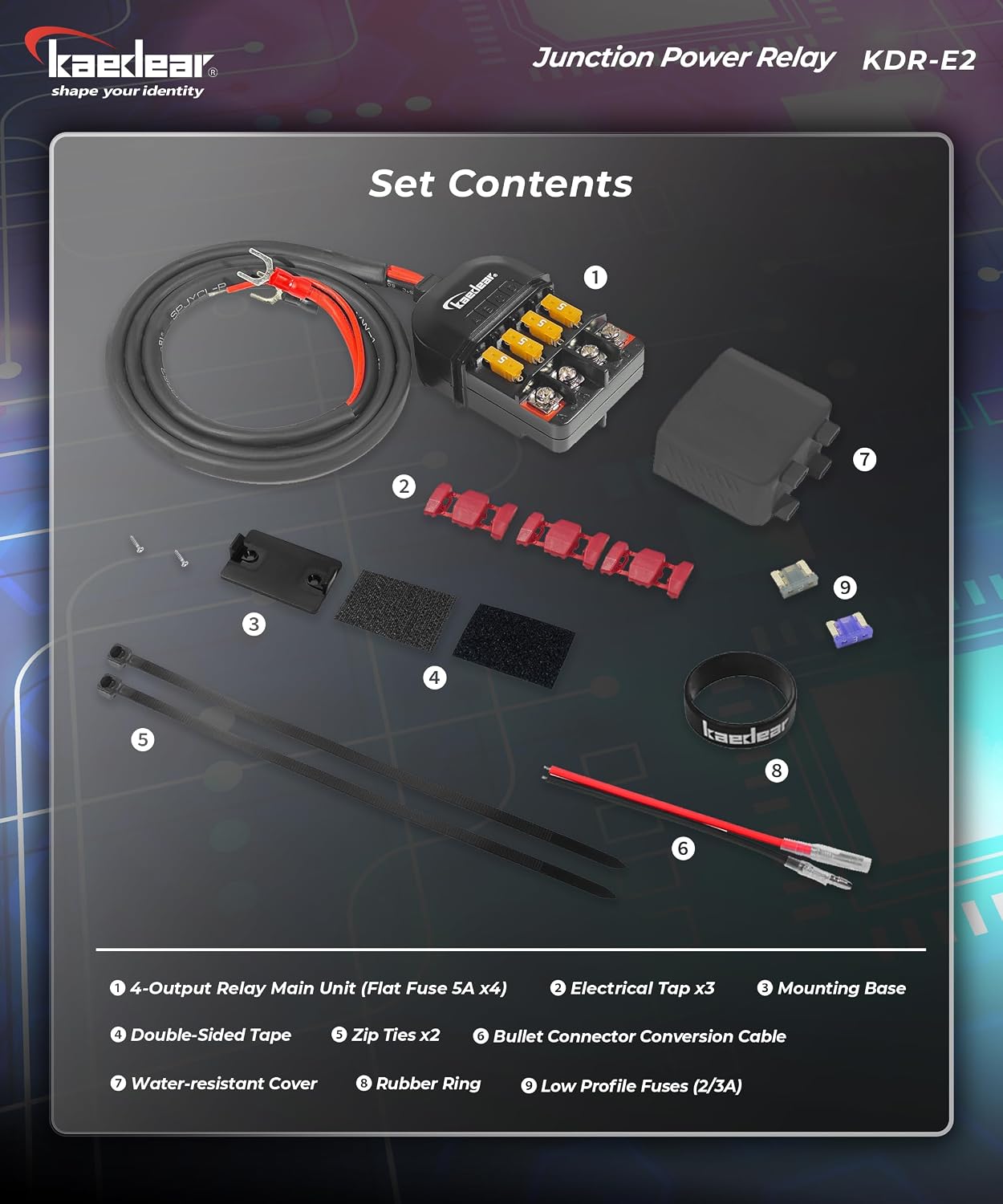

• [Set Content] 4-Output relay body (5A fuse x4), Bullet Connector Conversion Cable, Electrical Tap x3, Mounting Base, Double-Sided Tape, Cable Ties x2, Waterproof Cover, Rubber Ring, Low-Profile Fuse (2A / 3A)

Overview

• Connector Type : Y Terminal
• Contact Material : Polycarbonate
• Contact Type : Normally Open
• Current Rating : 20 Amps
• Mounting Type : Surface Mount (Double Sided Tape)
