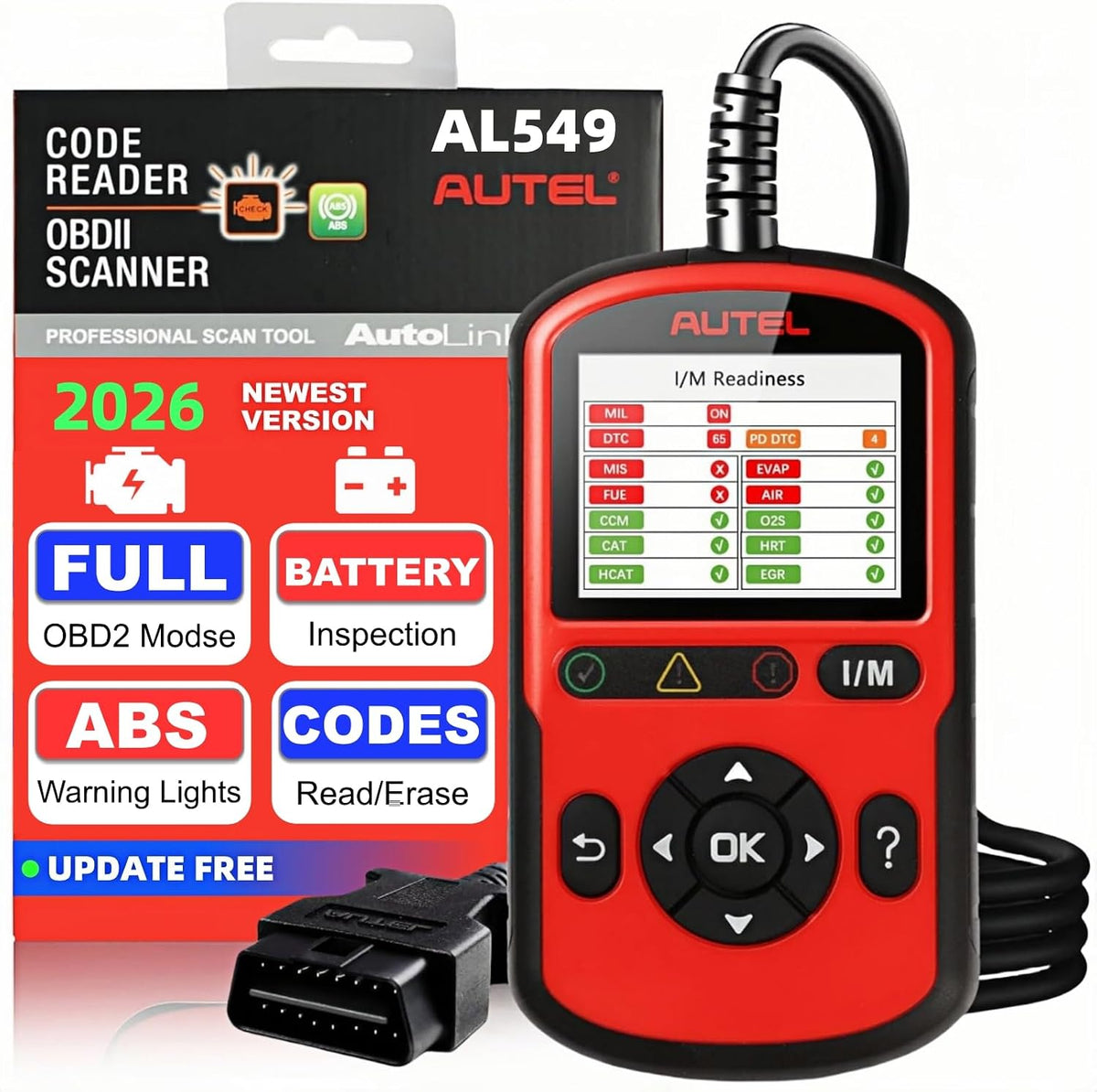

Autel AL549 OBD2 Scanner Code Reader with ABS Diagnostic & Battery Test

About This

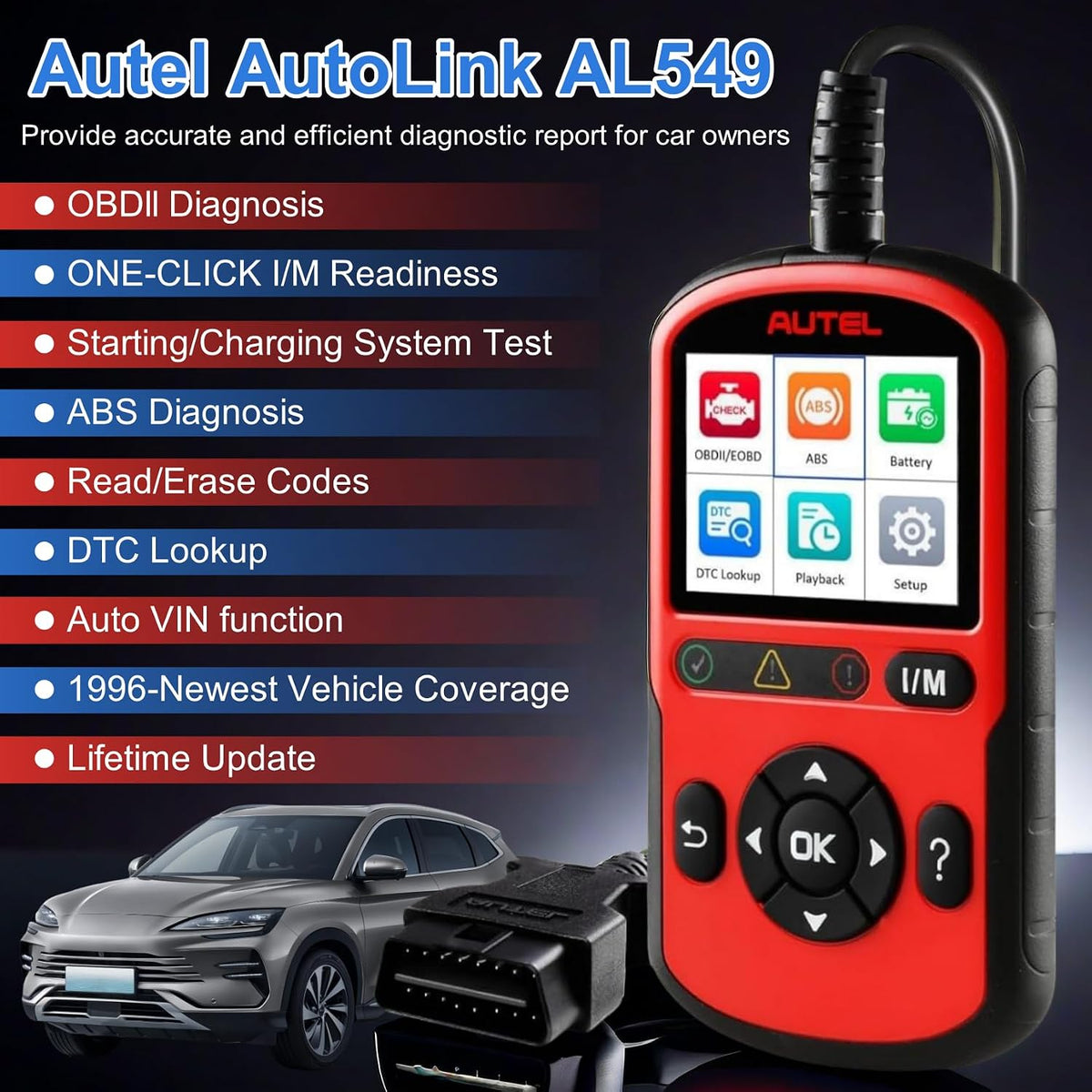

• Newest Autel Scanner AL549Autel Autolink AL549 is a 3-in-1 multifunctional OBD2 diagnostic solution: Complete OBD2 Diagnostic function, all 10 modes OBDII test, One-click I/M Readiness check, read live data, turn off CEL(check engine light) or MIL and etc; Read and ёrase ABS codes, turn off ABS warning lights and etc; universal car starting and charging system testing

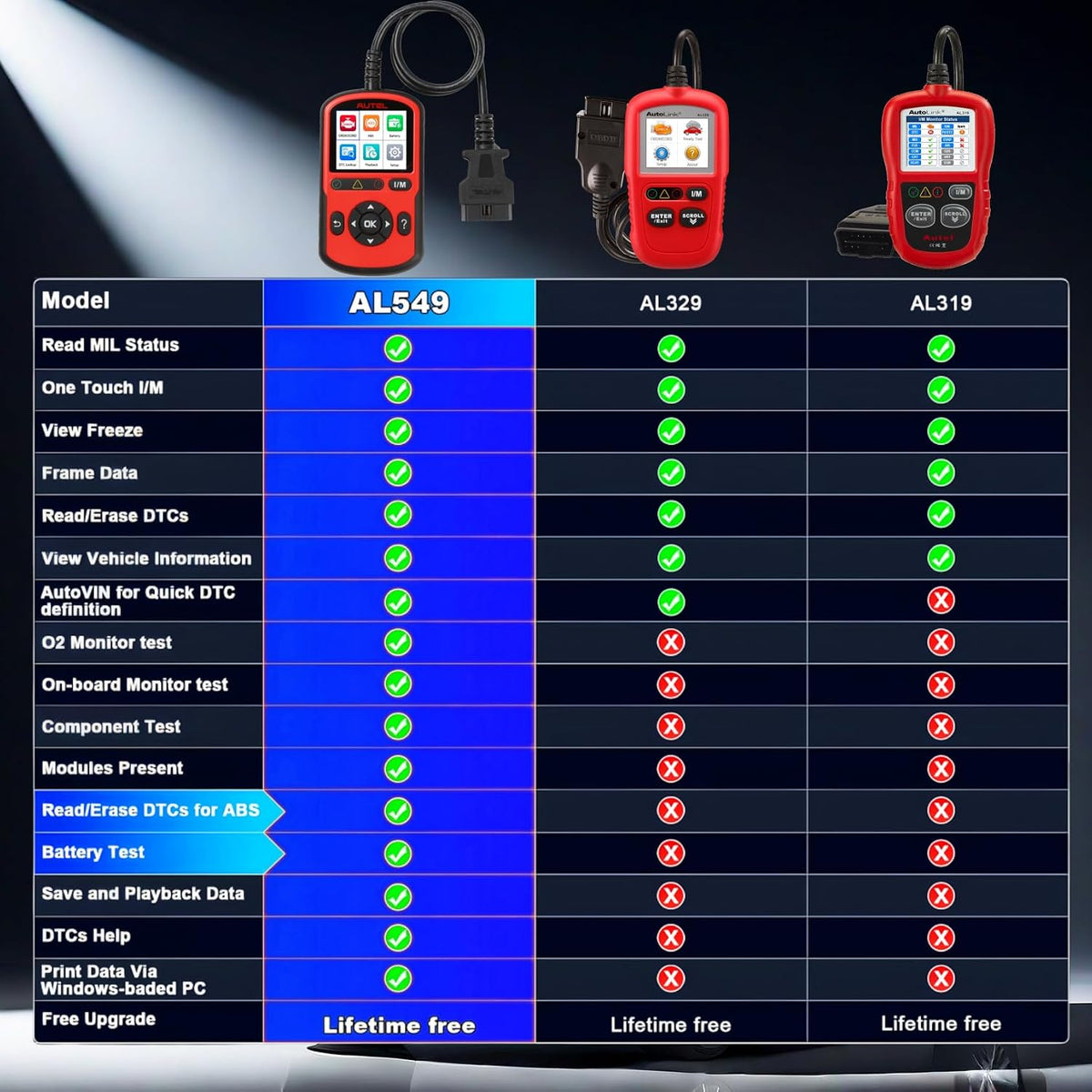

• 10 Test Modes of OBDII FunctionsAs the upgrade version of Autel AL519, AL529 and AL539, Autel Scanner AL549 can also accurately determine the possible causes by reading codes/live data/freeze frame/vehicle information, O2 sensor test, I/M readiness, on-board monitor test, and EVAP system leak test. Based on Auto VIN technology, this OBD2 diagnostic tool AL549 can automatically identify the car and quickly retrieve the car’s VIN. In addition, AL549 can read Enhanced Codes in Powertrain system for Ford, GM and Chrysler.
• AL549 Read/ёrase DTCs for ABSAutel AL549 is also an universal ABS code reader that is able to be used to retrieve and clear codes from the vehicle’s Anti-lock Braking System. It also provides the definition of each code. Thus, it can quickly figure out the system problems to help diagnosing reasons within the system that may cause the Malfunction Indicator Light (MIL) to turn on. Note: ABS diagnosis function works for OBD2 standard vehicles that is prior to 2020 only and does not support newer car models after 2020.
• ABS Cover 22+ Major Vehicles BrandsAutel Autolink AL549 can work with 21+ car brands , North America: Compatible with Ford, Lincoln, Chrysler, Dodge, Ram, GM, Cadillac, Chevrolet, Buick, GMC; Europe: Compatible with BMW, Mercedes-Benz, VW, Audi, Land Rover, Mini, Volvo, Jaguar; Asia: Compatible with Toyota, Honda, Nissan, Infiniti, Acura, Lexus, Mazda, Subaru, Hyundai, Kia, Scion, etc.
• Battery Test FunctionsAutel AL549 can effectively help you figure out car battery conditions and alternator situations. All you need to do is to strictly follow the on-screen guidance, Follow the steps step by stepand you will quickly get intuitive test result along with clear explanation and possible fix tips. Note: It's advised to complete pretest procedures based on the instruction on the user manual before you perform battery and alternator test.
• Data Playback/ Print, Lifetime UpdateAL549 allows you to record the live or real time PID data while diagnosing or keep the freeze frame data for later checking or playback; The Print Data function allows the printing of DTC data recorded by the tool by connecting the tool to a Windows-based PC with the supplied USB cable, This will Allow us to Better Read the Report and Understand the Details of the Fault, which will Make it Easier for us to Record Better. Autel AL549 support lifetime no cost update via the Maxi PC Suite on PC.

Overview

• Brand : Autel
• Power Source : Corded Electric
• Operating System : Android 4.0
• Screen Size : 2.8 inches
• Item Highlight : Enhanced Check & Reset Engine Fault Code, Live Data, Freeze Frame, CAN Car Diagnostic Scan Tool for All OBDII Car After 1996 See more
• More entry-level and advanced scanners are waitingfor you to discover !
• Autel has been deeply involved in the global automotive intelligent diagnosis and testing field for more than ten years. We have now built three product lines including automotive diagnostic products,TPMS series for automotive tire pressure monitoring systems and ADAS series for automotive intelligent assisted driving systems.
• The AutoLink AL549 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics and ABS warning lights. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I/M Readiness for quick State Emissions.
• · Features Read/Era-sёs Codes, View Freeze Frame and Live Data
• · Easily determines the causes of the Check Engine Light and ABS warning light, turns off lights, and era-sёs codes
• · Supports all 10 modes of OBDII test for complete diagnosis
• · Patented one-click I/M readiness with color coded LEDs, and built-in speaker provides both visual and audible tone for quick readiness verification
• · Supports reading vehicle battery information from OBD port, including starting system test and charging system test
