Car Seat Electrical Seating Slider , Flexible Forward Backward 12V Low Noise Steel Strong Load Bearing Electric Seat Slide Rail for Commercial Vehicle

About This

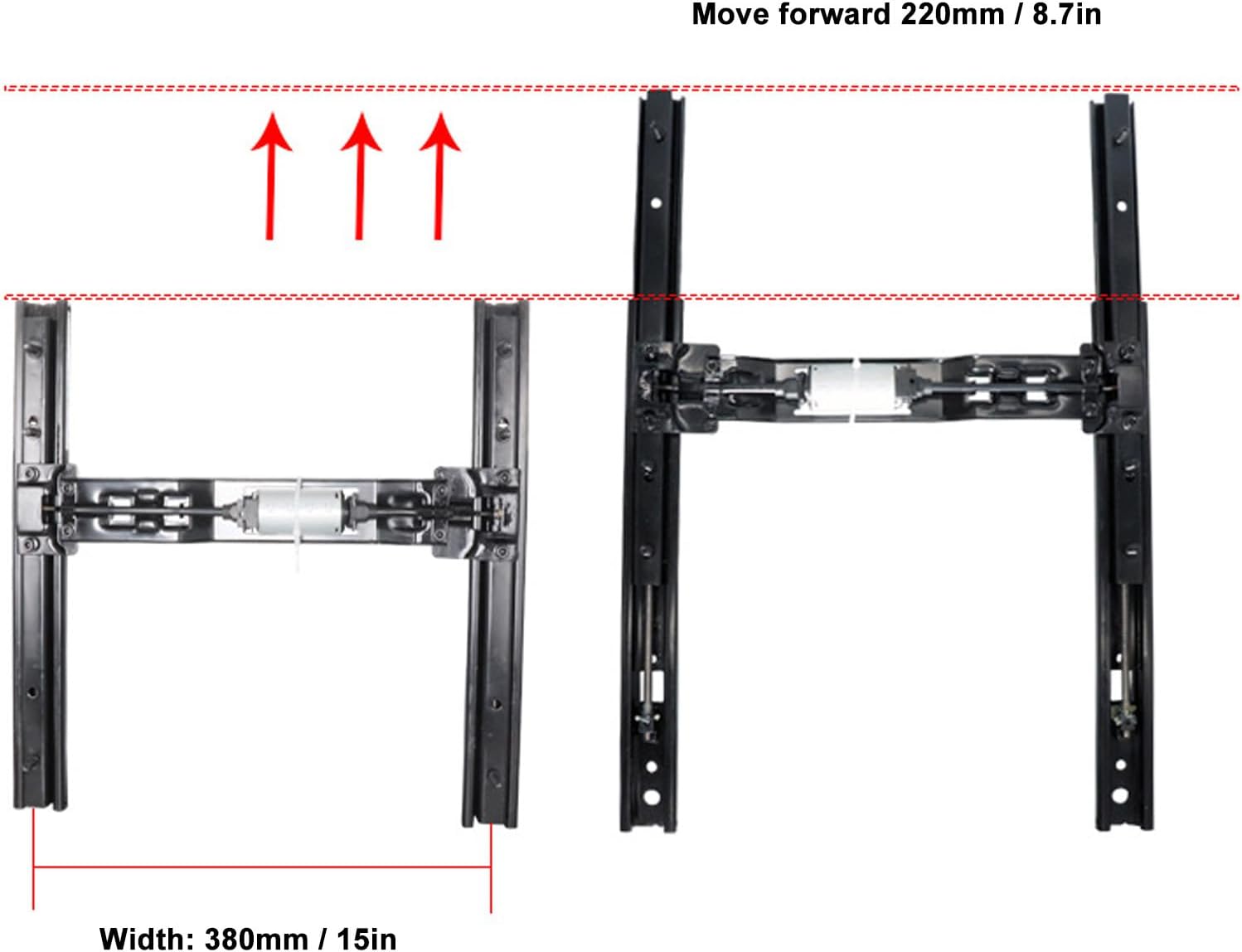

• Flexible Adjustment : The electric slide rail can slide freely forward or backward , 220mm forward and 20mm backward to help find the most comfortable seat position .
• 12V Power Supply : The car seat electric slide rail can be electrically controlled and adjusted by 12V power supply , and can be adjusted back and forth through centralized control .
• Wide Application : The car seat electric slide rail can be applied to most motor vehicles , such as RVs , cars , commercial vehicle and so on .
• Enhanced Driving Experience : This electric seat slide rail enhances your overall driving experience , providing added comfort and helping to reduce fatigue during long journeys .
• Practical : The adjustable seating slider track allows for precise positioning , ensuring that you find the most comfortable and ergonomic seating arrangement .

Overview

• Brand : ‎Kadimendium
• Assembly Instructions
• Installation Instructions

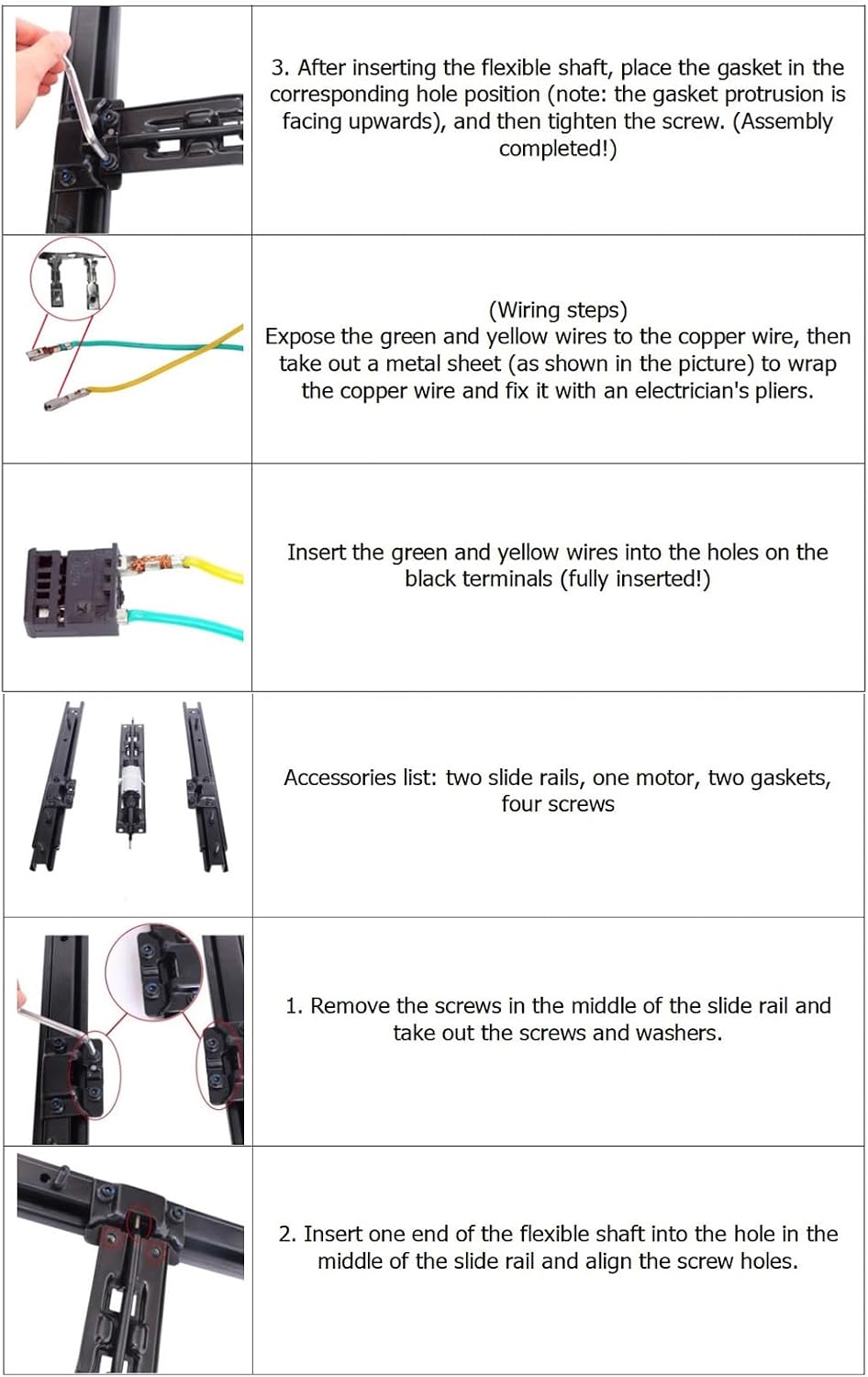

• 1. Disassemble the middle screw on the slide rail and take out the screw and spacer.
• 2. Insert the soft shaft into the hole in the middle of the slide rail, and align the screw hole.
• 3. After disassembling the soft shaft, put the gasket to the corresponding hole position (Note: the gasket is raised upward), and then tighten the screw. (Assembled!) )
• 4. Expose the green and yellow wires to the copper wire, and then take out the metal sheet to wrap the copper wire and fix it with electrician pliers.
• 5. Insert the green and yellow wires into the holes of the black terminals (fully inserted!)

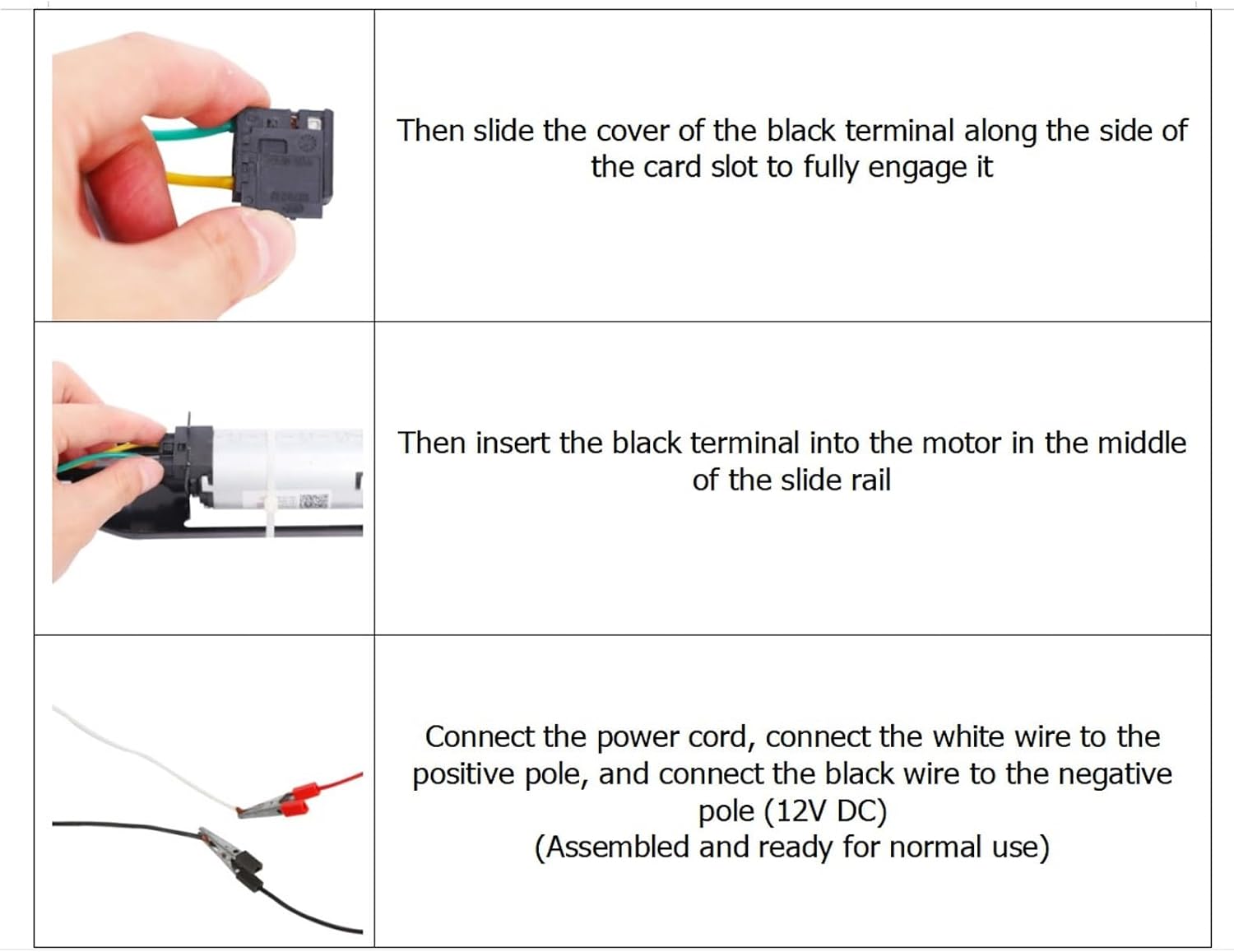

• 6. Then slide the cover of the black terminal along the side of the card slot
• 7. Insert the black terminal into the motor in the middle of the slide rail and get completely stuck
• 8. Connect the power cord, the white wire is connected to the positive pole, and the black wire is connected to the negative electrode (12V DC) (assembled and can be used normally)
• 2. Assemble and connect the slide rails to the harness
• 3. Find the seat base and remove the seat
• 4. Screw the slide rail, then install the seat on the new slide rail and connect the wiring harness with the car
• Electric Seat Slide Rail
• Working Voltage
