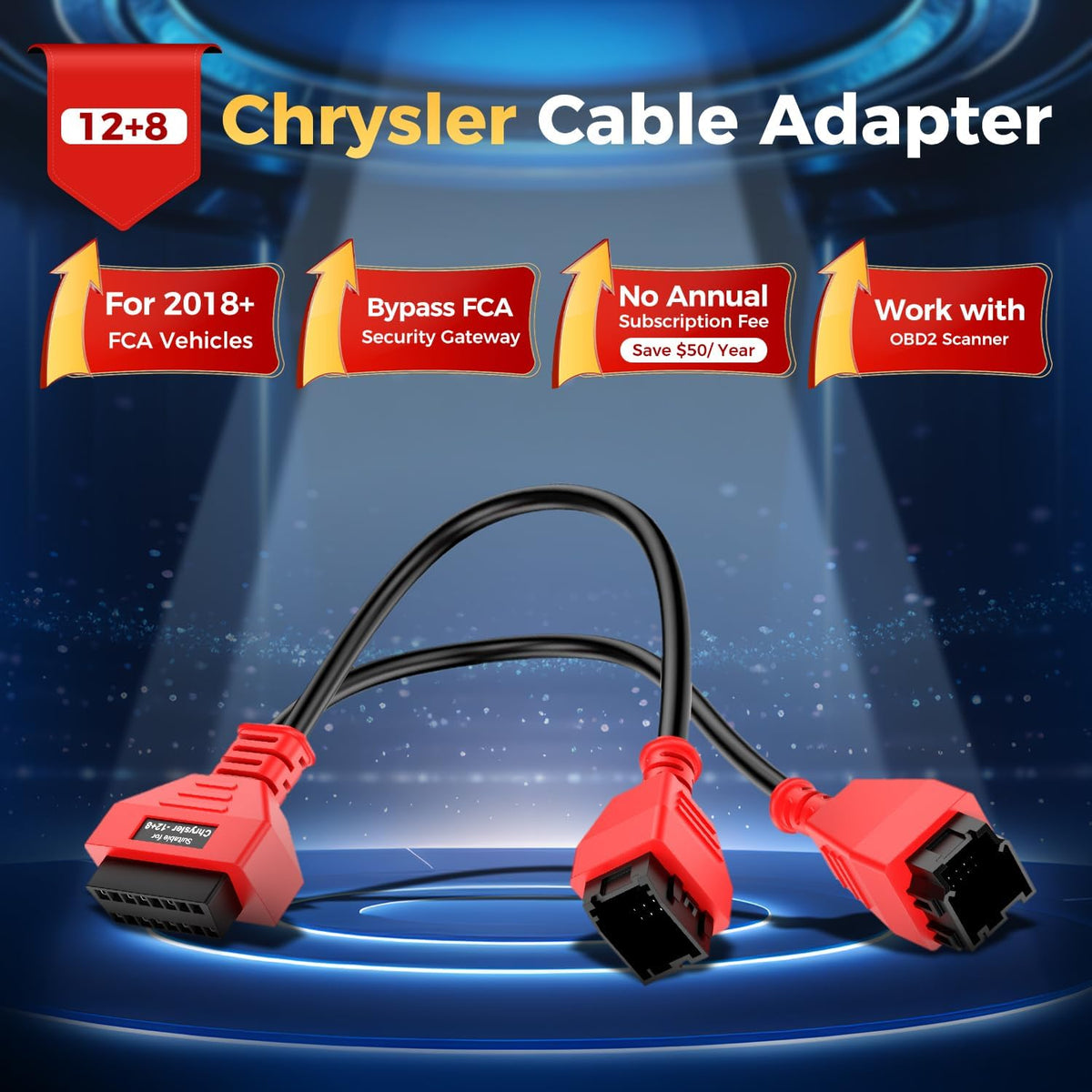

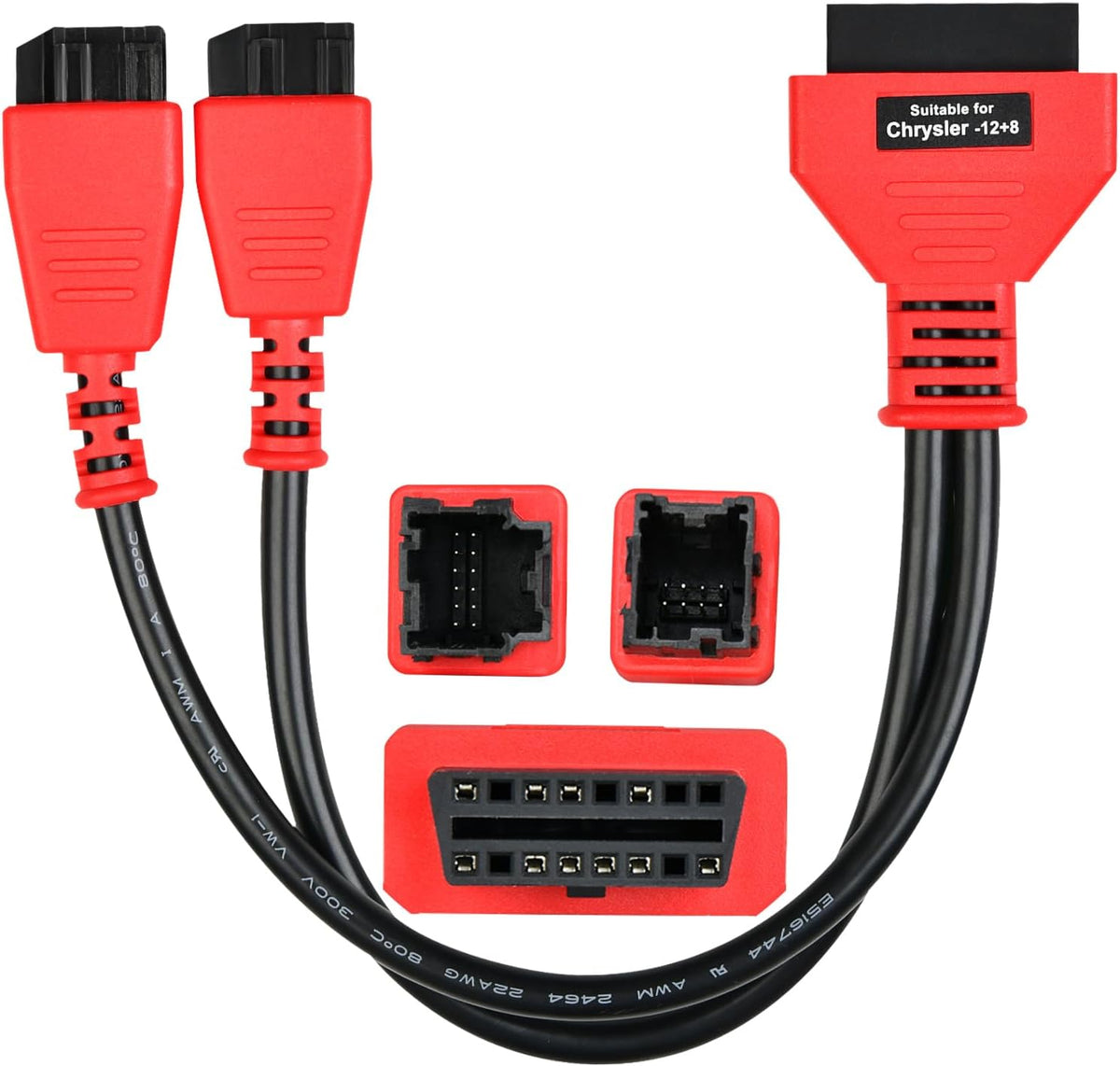

2026 12+8 OBD2 Cable for ChryslerThis 12+8 OBD Cable adapter for Chrysler is a good helper across the FCA gateway, work with all OBD2 Scanner. This for Chrysler 12+8 OBD2 diagnostic cable can bypass the FCA gateway protocol, connect the scanner directly to the car to perform a range of advanced functions. For any issues experienced after purchase or explore [additional accessory], please reach out to: auteldirect@ outlook. com. Our team will provide perfect solution for you.

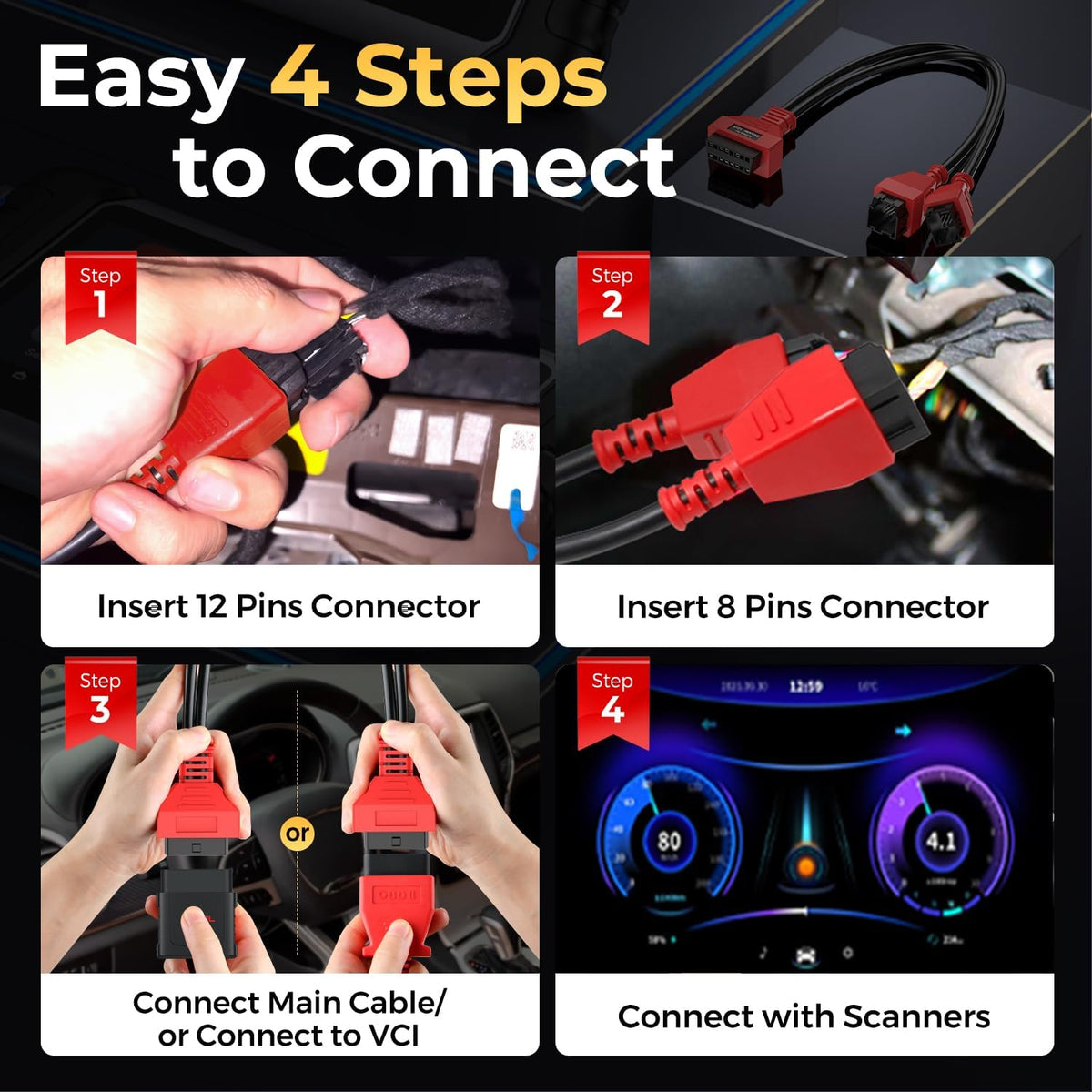

Connection in Simple 4 Steps1. Find and unplug the 12pin and 8pin connectors of the SGW module 2. Connect the FCA 12+8 PIN port directly to the 12PIN and 8PIN ports (connect to the two connectors of SGW) 3. Connect the other end of the FCA for Chrysler diagnostic cable directly to the 16-pin OBD2 diagnostic test cable or to the OBD Bluetooth interface 4. Connect the 16-pin OBD2 diagnostic cable to the scanner or establish communication between the OBD Bluetooth interface and the scanner.
Work with All OBD2 ScannersThis OBD II cable for Chrysler 12+8 SGW Adapter is compatible with obd2 car scanners.
Compatible Vehicle ModelsThis Ch-rysler 12+8 diagnostic cable can bypass the Security Gateway Module (SGM) and communicate for 2018 and later Chrysler, Dodge, Jeep, Fiat and Alfa vehicles, allowing the scanner to work on the above vehicles Execute complete system diagnostics, service functions, and other code functions.
Overview
Brand : Autel
Connector Type : 12+8 Cable for Chrysler
Cable Type : 12+8 Chrysler Cable
Compatible Devices : OBD2 Scanners
Special Feature : If you need tech support, please contact us via: auteldirect@ outlook. com.
Work with OBD2 Scanners: Both Wireless and Wired Scanners
