Autel MaxiVCI VCI200 V200 Wireless Dongle, VCI 200 OBD2 Connector Adapter

About This

• Support 95% Autel Scanners2026 Autel latest VCI (Vehicle Communication Interface) supports Below Autel Scanners. 900 Series: MaxiCOM MK900BT, MK900-TS, MP900-BT, MP900BT Kit. 906 Series: MaxiSys MS906 Pro, MS906 MAX, MS906 Pro-TS, MK906 Pro, MK906S Pro, MK906 Pro-TS, MK906S Pro-TS, MK906 Pro2-TS. IM Series: KM100, KM100X, KM100E. MaxiBAS Models: BT608, BT609, ITS600. Intelligent Series: Elite II PRO, MS909, Ultra Lite, Ultra. Autel MaxiVCI V200 supports DoIP and CAN FD protocols, covering more models.
• CAN-FD & DoIP CompliantNo expensive CAN-FD & DoIP adapters needed; MaxiVCI V200 is equipped with CAN-FD and DoIP to diagnose the latest 2026 and newer vehicles unavailable to other tools. Its data transfer rate is up to 5Mbit/s to speed up scanning all vehicle systems, saving more time for technicians and garages. Autel MaxiVCI V200 also supports CAN, EOBD, OBD, OBDII interfaces to cover more cars both old and new.
• Max 164ft. Wireless Blu.To.oth ConnectionThis Autel V200 VCI Bluet-ooth Doogle saves you from having to curl up at the steering wheel with tedious wires to repair your car, allowing you to repair the car freely around the car in 164 Feet. The ultra-fast Autel V 200 OBDII port can quickly transfer vehicle data to the scanner for accurate diagnostic results. More stable and fast with wireless Technology, saving time and win more business.

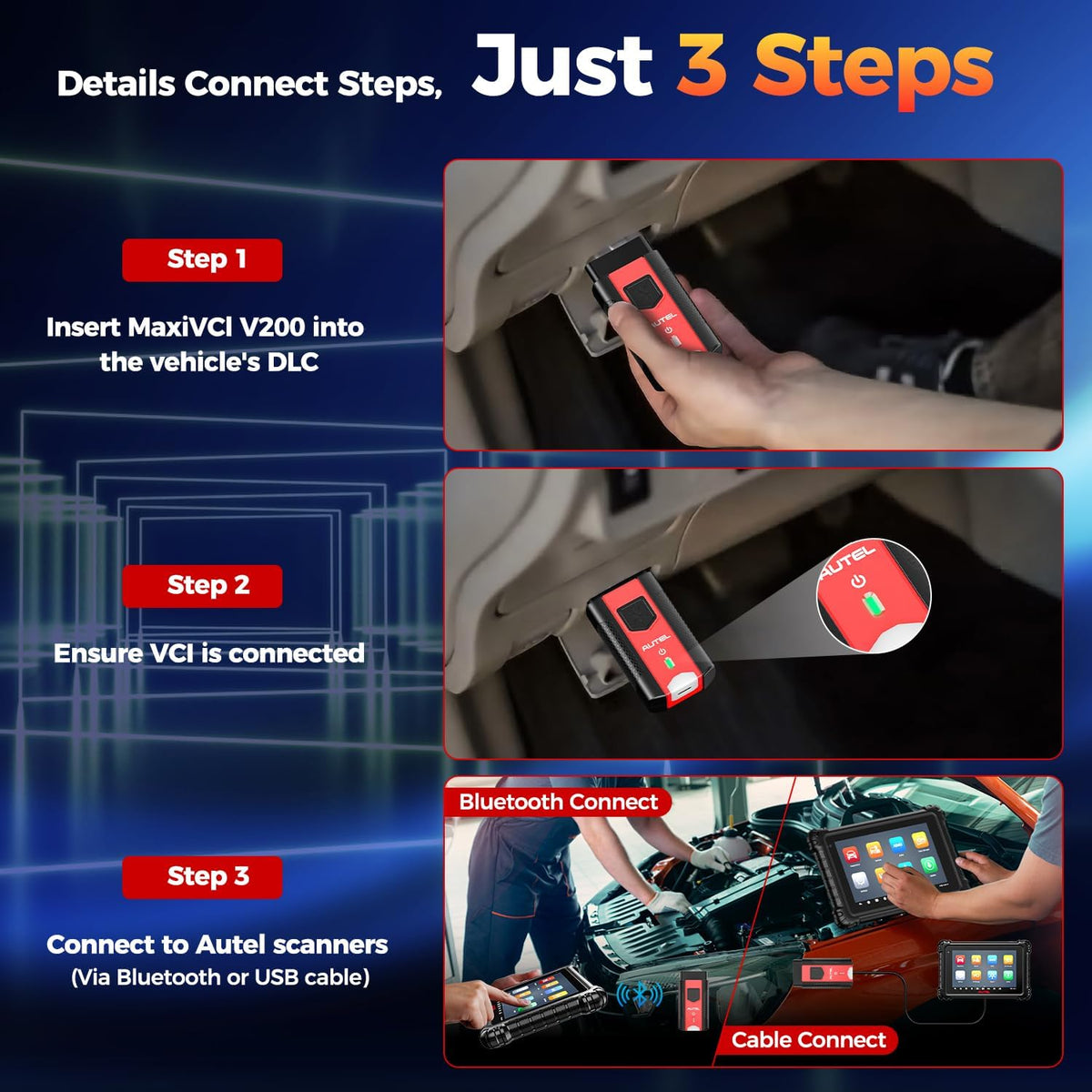

• How to Pair V200, Plug & PlayEasy 3 Steps to connect vehicle and scanner: 1. Insert the Vehicle Data Connector on the MaxiVCl V200 into the vehicle's DLC; 2. Power up the scanner; 3. Pair the scanner with the MaxiVCl V200 to establish communication. In addition, you can also plug the USB cable into the VCI200 to establish communication, and the system will give priority to USB communication. Both connection methods are simple and easy to understand.
• NON-OBDII & OBD II Vehicle Connect WayIf your car with Non-OBDII port, you require OBDI adapter to complete connect: First locate the required OBDI adapter and connect its 16-pi-n jack to the Vehicle Data Connector on the MaxiVCI V200, then Connect the attached OBDI adapter to the vehicle’s DLC. If your vehicle is standard OBD II port, only Insert V200 into DLC, which is generally located under the vehicle dash.

Overview

• Brand : Autel
• Power Source : Corded Electric
• Operating System : Windows XP
• Screen Size : 1 inches
• Item Highlight : 2026 2.0 of V150 VCI100 V100 Car Communication Interface, for MK900BT MP900BT MS906 PRO MS906MAX MS906 PRO-TS KM100 BT608 etc See more
• When Vehicle/Connection LED is solid green, the VCI is connected via USB cable.
• When Vehicle/Connection LED is flashing green, the VCl is communicating via USB cable.
• When Vehicle/Connection LED is solid blue, the VCI is connected via Wireless.
• When Vehicle/Connection LED is flashing blue, the VCI is communicating via Wireless.
• How to connect the vehicle and the scanner?

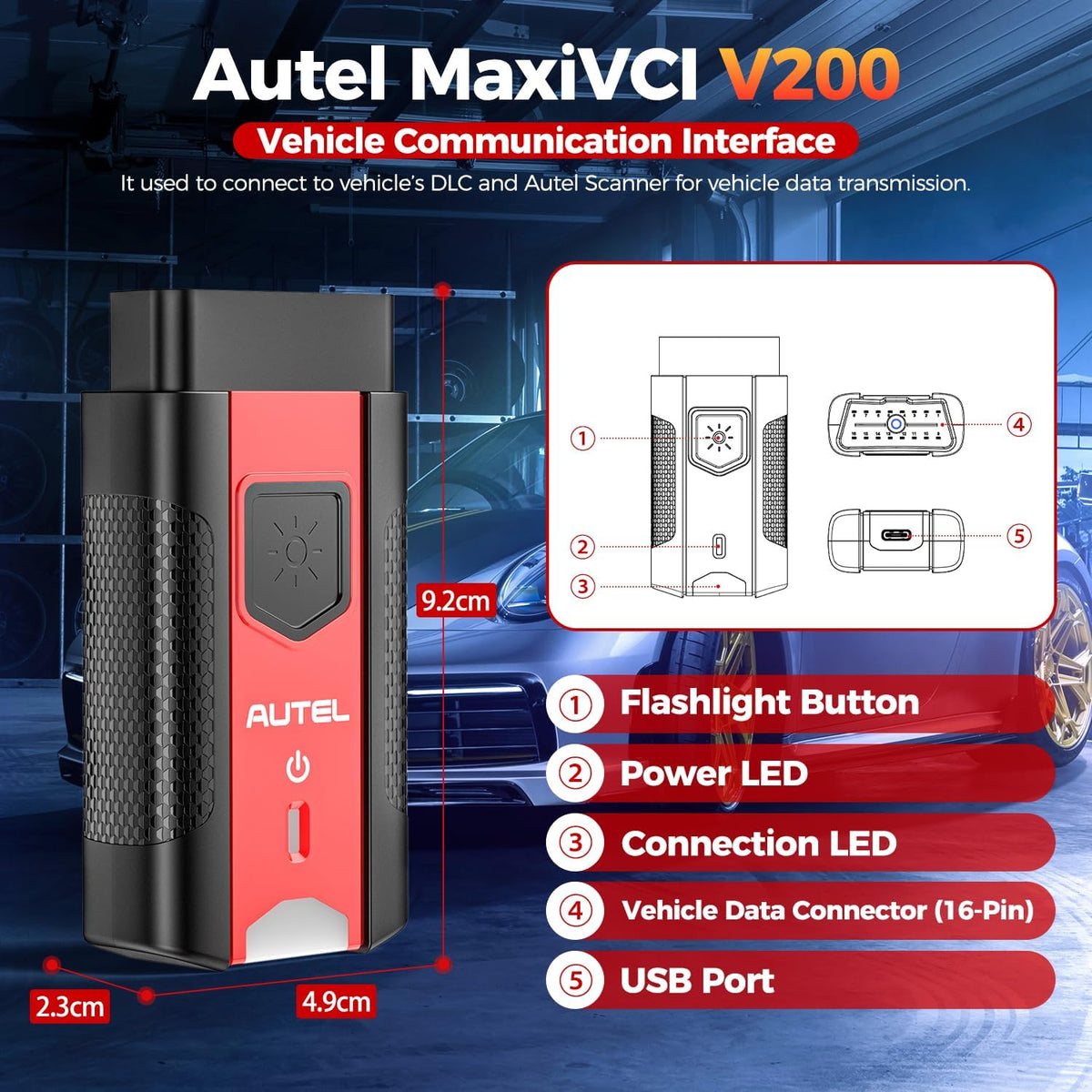

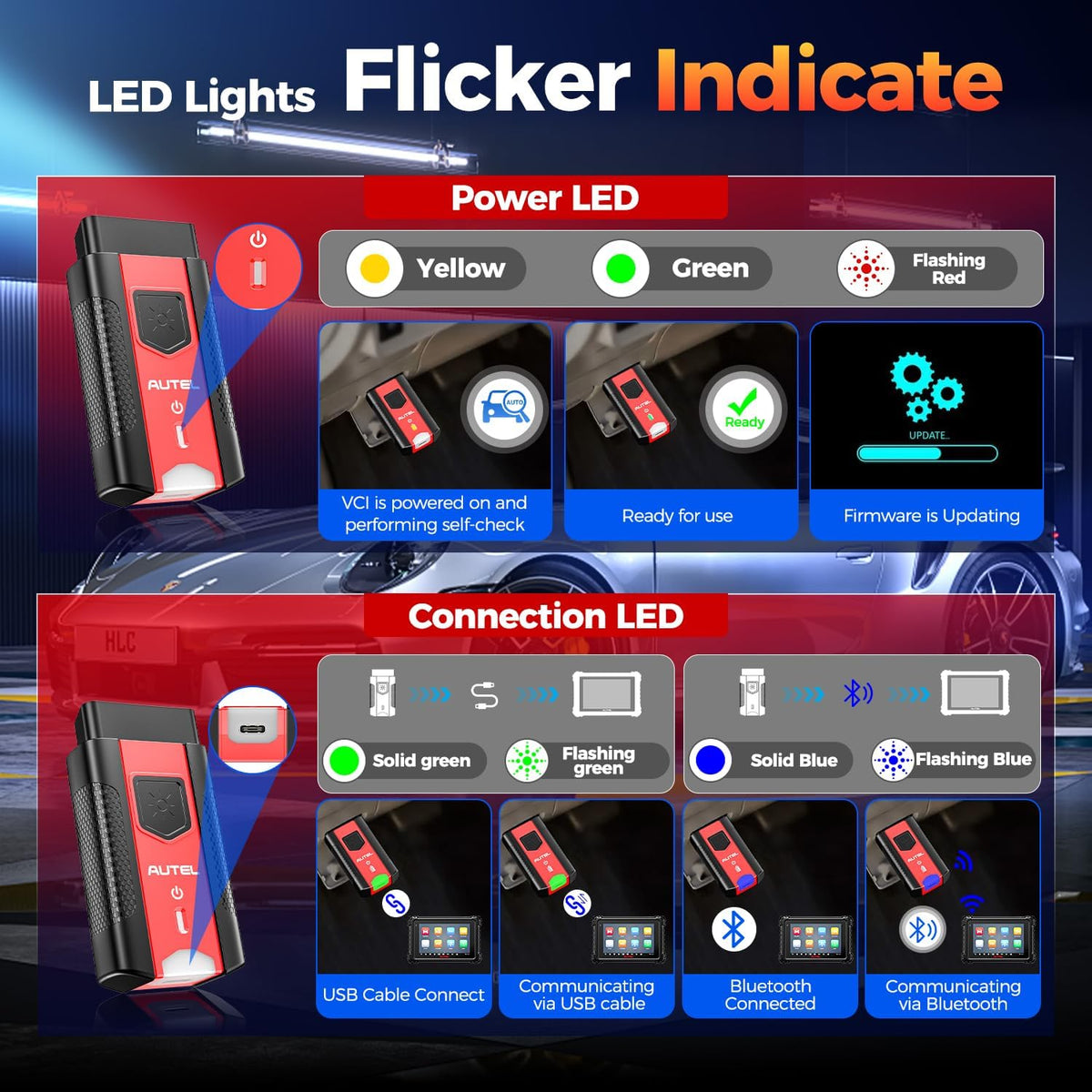

• Power LED Description: Yellow: VCl is powered on and performing self-check; Green: Ready for use; Flashing Red: Firmware is Updating
• Connection LED Description: Solid Green: Cable Connected; Flashing green: Communicating via USB cable; Solid Blue: Wireless Connected; Flashing Blue: Communicating via Wireless
• Autel MaxiVCI V200 OBD OBDII Connector is compatible with 2026 latest car scanners, such as Autel MS906 Pro/ MK906 Pro/ MS906 Pro-TS/ MK906 Pro-TS/ BT608/ BT609/ ITS600/ KM100 etc.
• With this V200 wireless connector, some scanner support DO IP/CAN FD protocol, thereby expanding vehicle communication, allowing you to diagnose more cars from 1996-2026.
• In addition, V200 also supports CAN, EOBD, OBD, OBDII interfaces, supports CAN FD/ DOIP protocols and becomes data communication bridge between the car and the scanner through V200 connection.
• Insert the Vehicle Data Connector on the MaxiVCl V200 into the vehicle's DLC
• Ensure the ta-let is sufficiently charged or is connected to the supplied DC power supply,
• Connect: Pair the scanner with the MaxiVCl V200 to establish communication link (Select VCI Manager to automatic pair); Cable Connect: Connect the scanner and the MaxiVCl V200 using the USB cable.
