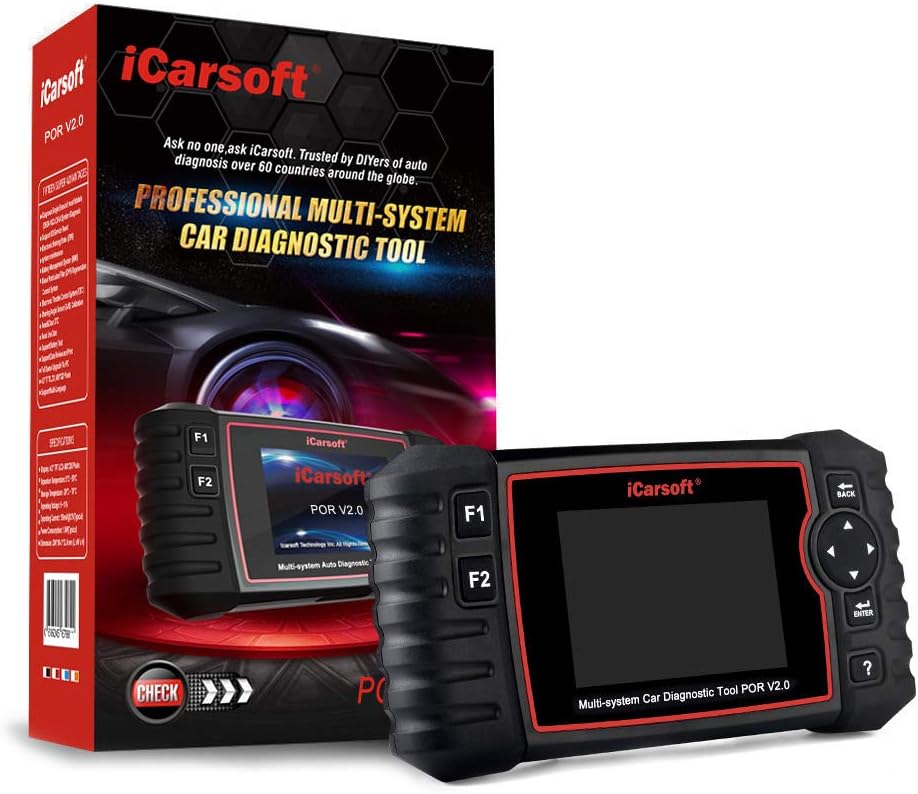

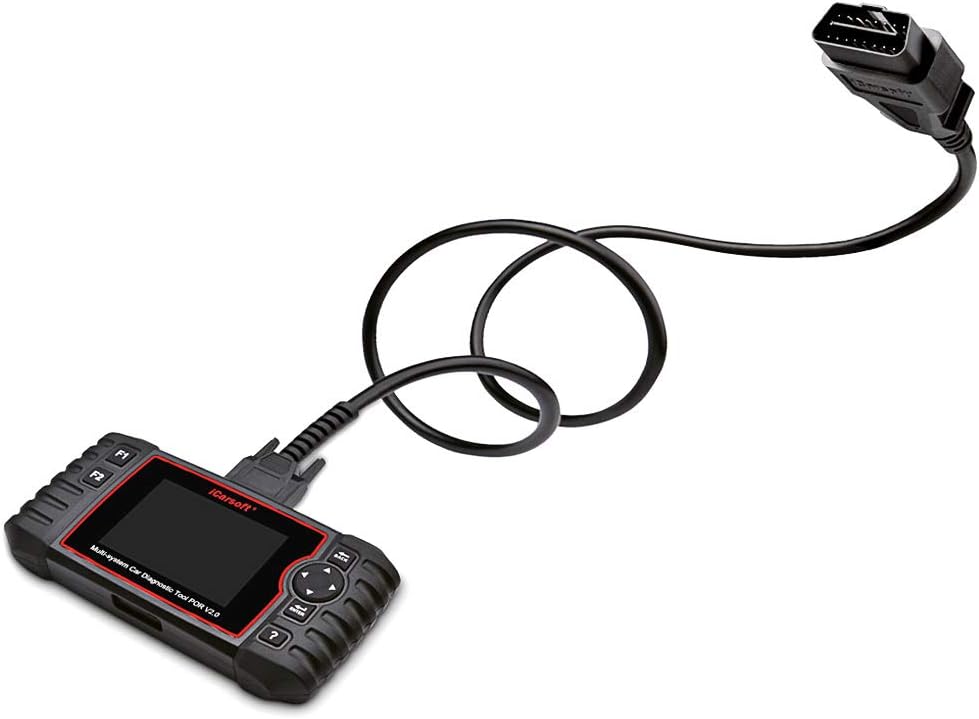

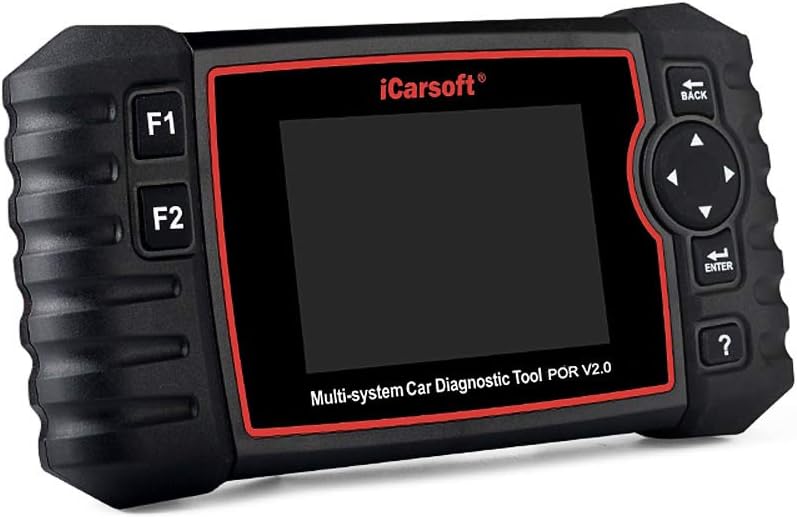

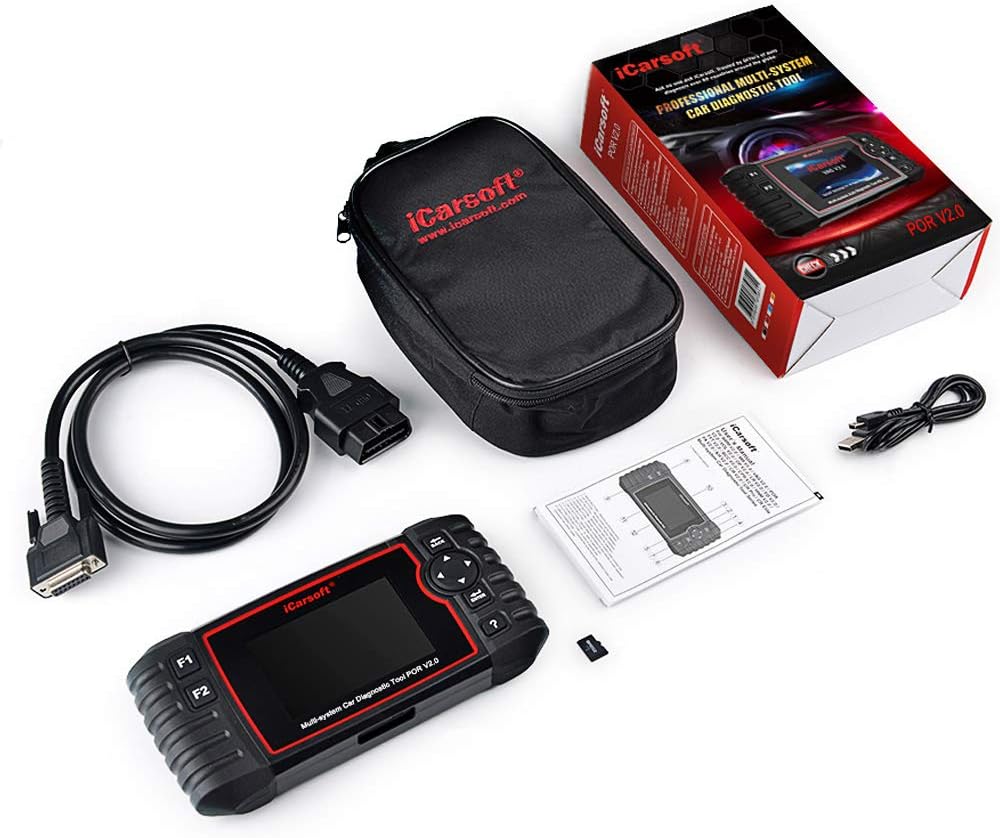

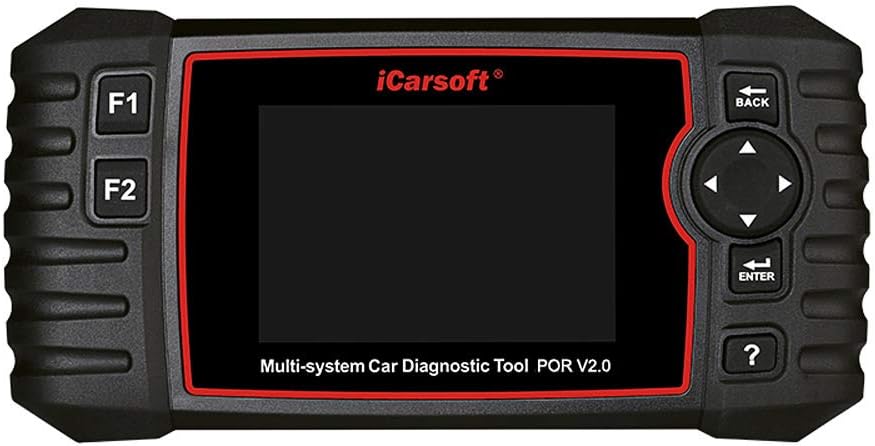

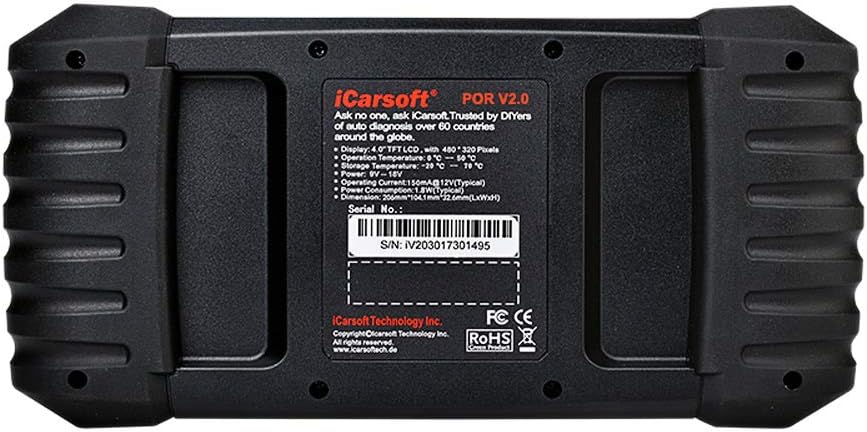

iCarsoft Auto Diagnostic Scanner POR V2.0

About This

• Scanner POR V2.0 with all obd2 services
• Do the scanning for engine
• Support OBDII/EOBD Ten Modes of Operation

Overview

• Brand : iCarsoft
• Power Source : Battery Powered
• Operating System : Windows 7
• Screen Size : 4 inches
• As one of 4 entrepreneurs of car diagnostic equipment, iCarsoft always deeply root in technology and has an extraordinary reputation in offline car repair shops and online DIY mechanics and car owners worldwide.
• More professional and reassuring quanlity and 100% services enable iCarsoft to provide lifelong free updates and lifelong free hardware repairs
• POR V3.0 integrates 9 commonly-used service functions for daily maintenance and 17 advanced professional functions for complex repair tasks.
• 9 Hot Service Functions covering your daily maintenance needs
• # Oil Reset: Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change. # Electronic Throttle Control: Relearns throttle valve control parameters after resetting or replacing the throttle body.# EPB-Brake-Pad Reset (EPB): Retracts the electric parking brake calipers and resets the brake pads after replacement. # Steering Angle Reset (SAS): Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement. # DP FRegeneration: Performs DP Fregeneration, component replacement initialization, and DP Frelearning after engine control unit replacement. # Injector Coding: Relearns the injector control parameters when an injector is renewed or replaced. # ABS Bleeding: Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement. # Air Suspension Service: Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults. # Battery Management Service (BMS): Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and REGISTER NEW BATTERY TO CARS.
• 17 High level service functions for professional technicians
• # TPMS Reset: Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors. # Air Conditioner Service: A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization. # Head Lamp Service: Calibrates and initializes the adaptive headlamp system (AFS/Matrix LED) . Essential for Porsche models equipped with Dynamic Light System or LED Matrix headlights. # Body Stability Control Service: Resetting or deleting adaptation values, and initializing the unit. # Engine Control Service: Resetting or deleting adaptation values, and calculating fuel consumption. # Transmission Control Service: Resetting adaptation values and transmission fluid level adaptation. # AirB.ag Reset: Resets airb.ag data to clear the airba.g (SRS) warning light after a collision. # Seat Service: Calibration after repairing or replacing the seat position drive motor. # Door-Window-Roof: Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function. # ODO Reset: Reads odo values stored in multiple ECUs (for service and verification purposes). Exhaustgas Recirculation: Recirculates a portion of engine exhaustgas back into the intake system. # Clutch Matching: Learns the clutch contact point and engagement position where the clutch begins to transmit engine torque. For adaptive clutches only. # High Voltage Battery: Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring. # Cruise Control System: Performs adaptive cruise control (ACC) calibration and personalization # Radar/Camera: Performs radar and camera learning and calibration (ADAS). # Vehicle Setup: Configure features and match new components. # Seat Belt: Performs seatbelt pretensioner reset and related maintenance after airb.ag deployment.
• POR V3.0 includes a dedicated card reader for hassle‑free software and database updates via your PC.
• The device turns on but cannot establish a diagnostic connection. What should I do?
• Please verify your car model and year. POR V3.0 supports the car models from 1996 to 2025. Certain service functions for 2024 vehicles are still being optimized. Disable car power-saving mode & update the firmware and software to the latest version.
• DTCs can be read normally but fail to be cleared or reappear after clearance, why?
• Keep ignition on & engine off. Record freeze frame data first before clearing codes.
• Persistent hardware faults need physical repair prior to code clearance.
• Some fault codes of systems like SRS & ABS can only be cleared after bidirectional tests.
• What's the difference between POR V3.0 and the older POR V2.0?
